Products

Mold temperature controllers

Water Medium Temperature Controllers

Direct Cooling type (Max. 320°F / 160°C)
High Pressure type (Max. 356°F / 180°C)

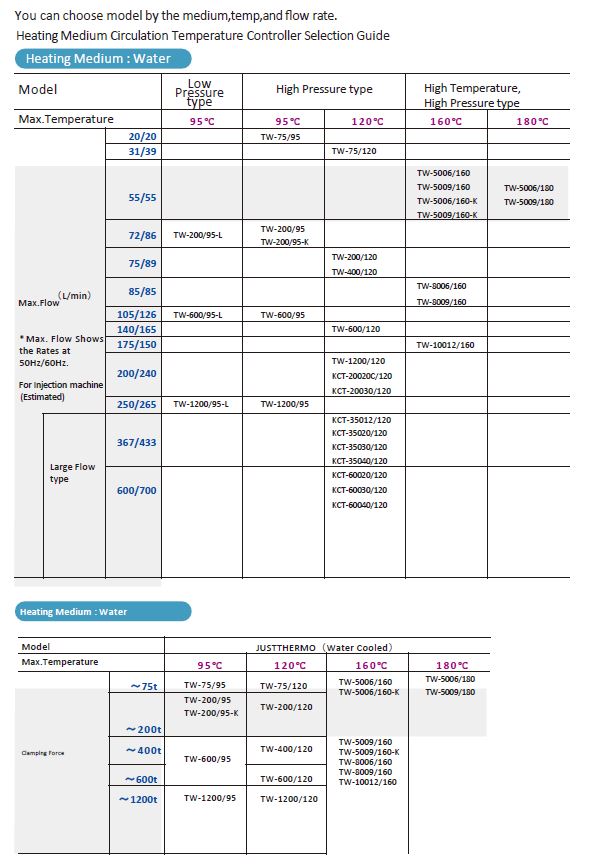

TW/160, 180 series

JUSTTHERMO

Temperature Max. 160 / 180°C

1. Display in 0.1 °C increments
2. Temperature sensor Pt100 Ω
3. SSC for heater control
4. Remote operation (No-voltage contract or open controller)
5. Operational output (including out terminal) [Relay contact 250V 1.0A max.]
6. Alarm output (including terminal) [Relay contact 250V 1.0A max.]
7. Emergency stop
8. Run / Stop timer (to set run and stop time)
9. Auto depressurization
10. Maintenance alarm
11. Pressure gauge (Glycerin filled)
12. Air purge
13. Weekly timer (Parameter setting)
14. Alarm log
15. Stop after cooling time

Features

1. Newly adopted LCD touch panel
   Easy to use, easy to see, and answers to customers

LCD touch panel operation

Touch the SP1 section display on the panel.
Set temperature can be entered or changed.

Trend graph display

Medium temperature graph display is available.
(Presssure, flow rate, and power can be displayed as separate options)

Alarm / setting change history display

Display 20 alarms history.
Date, time, alarm number, and description are displayed.

Alarm contents display

Press the help button to see how to respond to alarms.

MODBUS / SPI communication

MODBUS / SPI communication standard equipped for temperature control and alarm operation / confirmation.
Easy to introduce for loT / smart factory.

Temperature stability

A PID control program suitable for injection molding provides exceptional temperature stability.
